Viridian Solar ArcBox Rail Drop-Mounting Bracket | ARC-M02
Viridian Solar ArcBox Rail Drop-Mounting Bracket | ARC-M02

Regular price
£2.40 (inc VAT £2.88)
Shipping calculated at checkout.
Details
Mount the innovative ArcBox solar connector enclosure to your chosen rail system with this rail drop-mounting bracket.
Key features:
- Mount bracket for the Viridian Solar ArcBox solar connector enclosure
- Designed for use with a solar panel rail with 8mm or 10mm T-bolt and suitable for rail widths up to 40mm

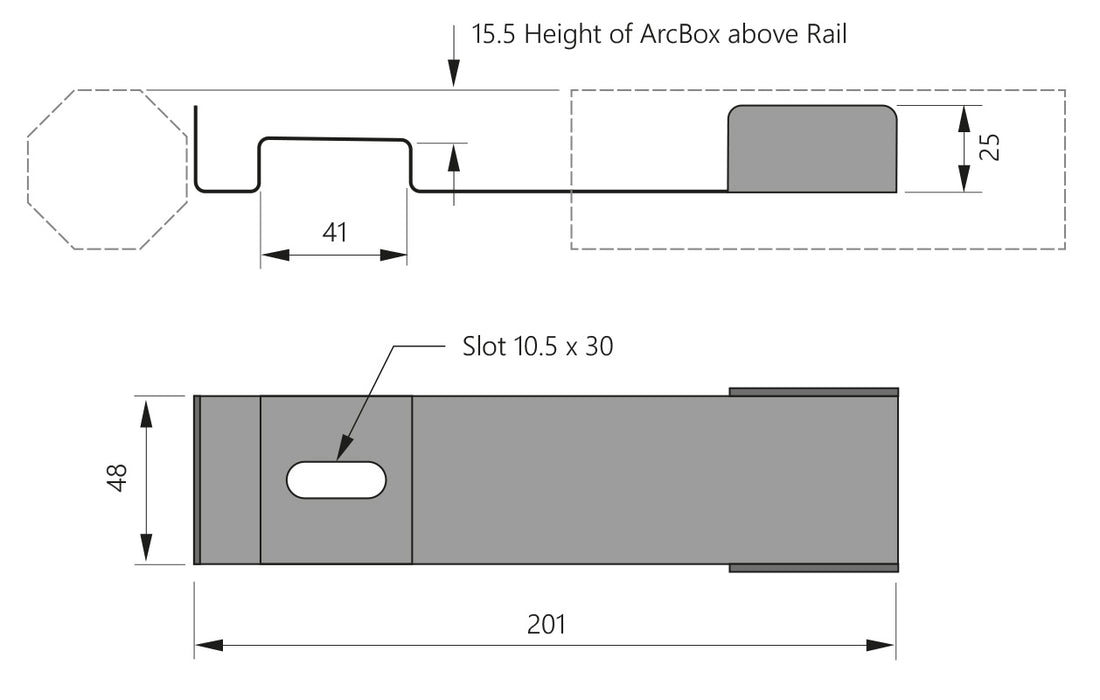

- ArcBox is attached to one of three mounting points for different orientations and has a final position of 15.5mm above the top face of the rail
- Ideal for fitting under a parallel-mounted low-profile solar panel, such as in pitched roof installations
- Compatible with Sunfixings, K2 Dome fix, Van der Valk ValkPro and many others
- ArcBox available separately
Datasheet
Download: ArcBox-Brochure.pdf
Couldn't load pickup availability
