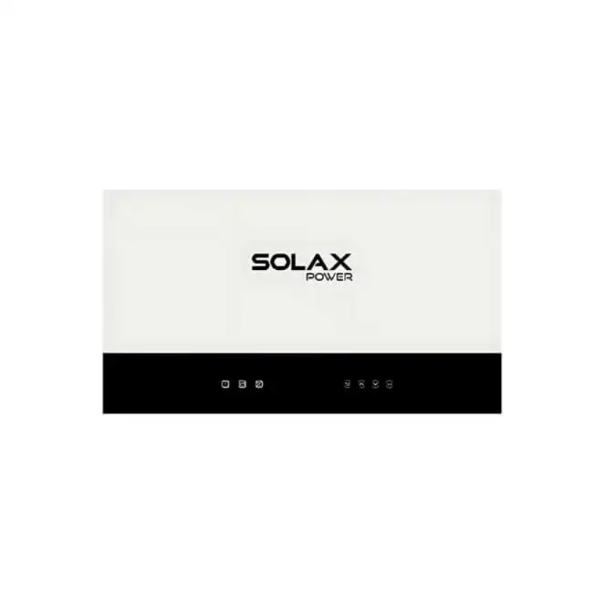

SolaX X3 IES 15kW Three-Phase Hybrid Inverter | X3-IES-15K
SolaX X3 IES 15kW Three-Phase Hybrid Inverter | X3-IES-15K
Details
Step into a new era of home energy management with the SolaX X3 IES hybrid inverter, a marvel of modern engineering designed to elevate the energy efficiency of your home or small business.

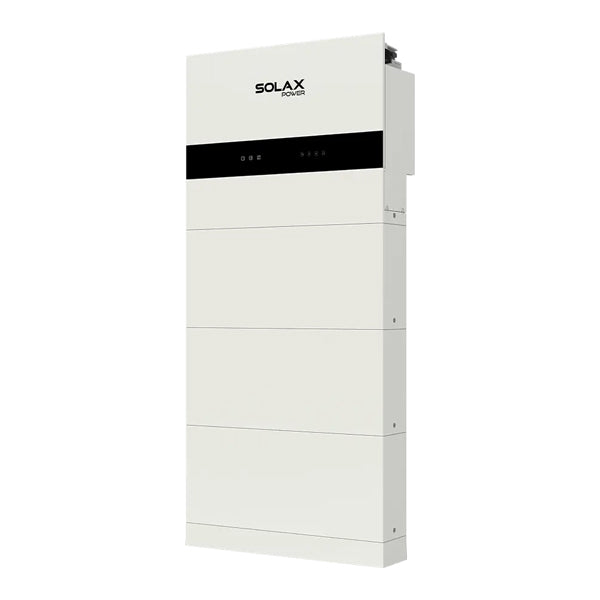

It's designed to be used as part of the SolaX IES Energy Storage System alongside the HS50E battery and battery management unit to ensure you have everything you need to make the most of the power captured by your solar installation.
Its sleek design allows it to fit into its surroundings, while its modular construction means you can add more batteries in future as your needs grow. Offering excellent efficiency and reliability, this hybrid inverter and battery system makes it even easier to save on your energy bills.
Key features:
- Three-phase hybrid inverter for use with the IES battery and battery management system to create an all-in-one system
- Easy, plug-and-play installation
- Modular design means battery capacity is expandable between two and six batteries
- Intelligent functionality such as AI-ready forecasting of solar generation and home consumption, and micro-grid feature to support on-grid and off-grid operation
- Intelligent load management for heat pumps and EV chargers
- Two MPP trackers with two strings on one tracker and one on the other
- Maximum 200% oversize and 200% PV input power
- Maximum 20A DC single-string input current to support high-power solar panels
- Low start-up voltage offers longer operation time
- Inbuilt shadow tracking function
- Maximum charge/discharge current up to 50A
- Back-up functionality with switchover time under 10ms (UPS level), up to 200% EPS output for 10s
- Ingress protection rating: IP66
- Dimensions: 717mm (W) x 405mm (H) x 209.5mm (D)
- Weight: 37kg
- Five-year standard warranty
Datasheet
