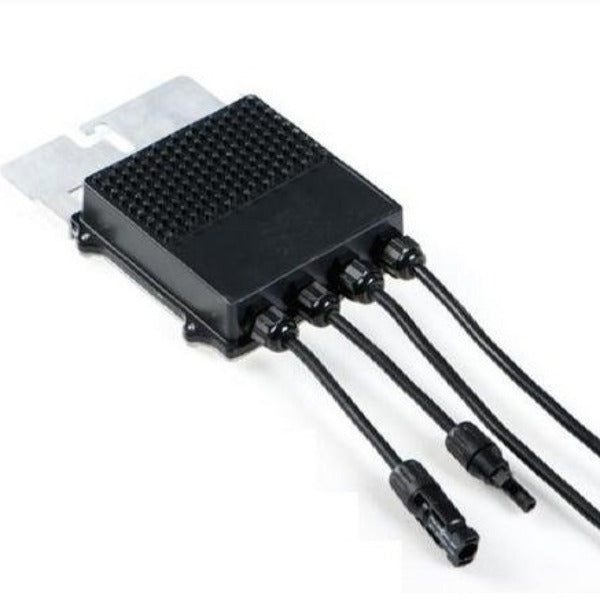

SolarEdge 500W Residential Solar Panel Optimiser | S500-1GM4MRM
SolarEdge 500W Residential Solar Panel Optimiser | S500-1GM4MRM
Details
Maximise the energy generated by your residential solar panels with this SolarEdge power optimiser. By connecting one to every module, you can mitigate the energy lost through manufacturing tolerance, partial shading and module aging.
Offering high levels of safety, this solar panel power optimiser enables panels to operate independently. This ensures under-performing panels don’t affect others in the string which helps to elevate the overall system yield.
Key features:
- Residential power optimiser for use on solar panels up to 550Wp, Isc 15A and 60V input voltage
- Supports bifacial solar panels
- Detects abnormal connector behaviour to prevent safety issues
- Module-level voltage shutdown for safety of installers and firefighters
- Flexible design maximises the use of space and the length of the string
- Simplified cable management to speed up installation
- Peak efficiency: 99.5%
- Rated DC input power: 500W
- Compatible with SolarEdge residential inverters
- Ingress protection rating: IP68
- Dimensions: 129mm (W) x 155mm (L) x 30mm (H)
- Weight: 720g
- 25-year warranty
Datasheet
