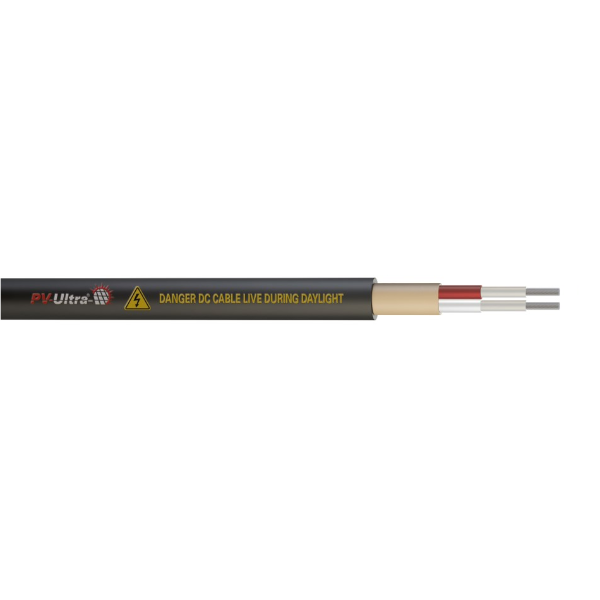

PV-Ultra 6mm² Double-Insulated Four-Core Solar Panel DC Cable (per Metre)
PV-Ultra 6mm² Double-Insulated Four-Core Solar Panel DC Cable (per Metre)
Details
Developed specifically to meet the needs of solar installers, this PV-Ultra DC cable delivers excellent mechanical properties and can be installed both externally and internally. It features double insulation with CarbonTek bedding and SolarTek sheathing.
Key features:
- Four-core DC cable with flexible class 5 tinned annealed copper wire
- Double-insulated and cross-linked
- CarbonTek bedding and SolarTek sheathing for extra insulation
- Red and white core colours to comply with BS 7671
- Aesthetically similar to a regular power cable to reduce the risk of accidental cutting
- Yellow warning message to highlight that the cable is live during daylight hours
- Lifespan of around 25 years
- Maximum conductor resistance: 5.09Ω/km
- Nominal diameter of bedding: 15.3mm
- Approximate overall diameter: 17.7mm
- Approximate weight: 585kg/km
- Maximum current rating (clipped): 44A
- Operating temperature: -15°C to +90°C
Datasheet
