Mounting Systems ProLine 30-7-28 Basic Stainless Steel Slate Roof Hook | 805-0007
Mounting Systems ProLine 30-7-28 Basic Stainless Steel Slate Roof Hook | 805-0007
Details

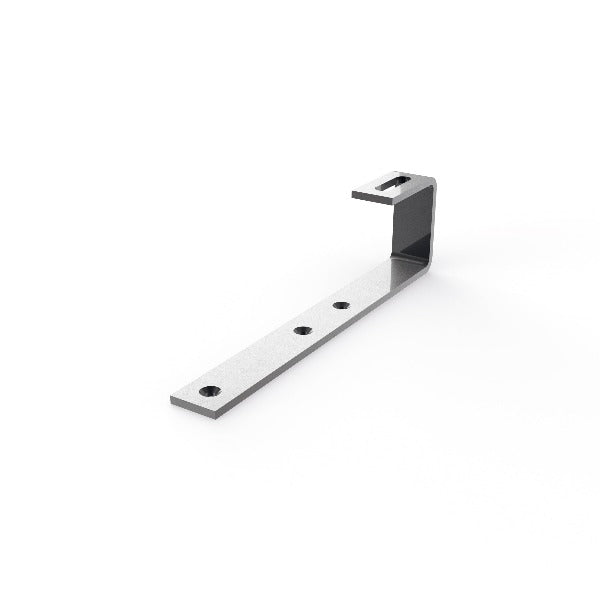

Roof hooks are an integral part of a solar panel mounting bracket on a tiled pitched roof and help provide a secure base for the panel to sit on. This basic slate-tile model is made from durable stainless steel and is supplied without fixings so you can adapt it to fit your needs.
Key features:
- Solar panel roof hook for use on a slate pitched roof
- Constructed from stainless steel
- Total height: 70mm
- Leg dimensions: 30mm (W) x 250mm (L) x 5mm (D)
- Base holes: 3 x ø7mm (countersunk)
- Maximum height adjustment: 15mm to rail area
- Height in roof batten area: 65mm
- Upper slot dimensions: 28mm x 9mm
- Weight: 0.49kg
Datasheet
Couldn't load pickup availability
