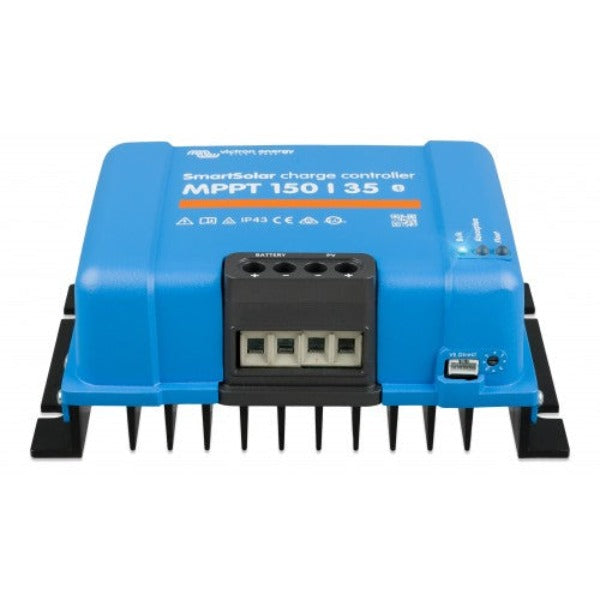

35A Victron SmartSolar MPPT150-35 150Voc, PV Charge Controller - 12V, 24V, 48V Battery
35A Victron SmartSolar MPPT150-35 150Voc, PV Charge Controller - 12V, 24V, 48V Battery
Details
35A Victron SmartSolar MPPT150-35 150Voc, PV Charge Controller - 12V, 24V, 48V Battery
35A MPPT with max VOC 150V, 12, 24, 36 or 48 Volt battery connection
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.
Specifications
Charge Controller | |
Max VOC | 150 |
Amps | 35 |
Voltage | 12/24/36/48 |
Cable Connection | |
Type and size | 40A fuse and isolator (battery side) |
Size mm2 | 16mm2 cable (max) |
Datasheet
